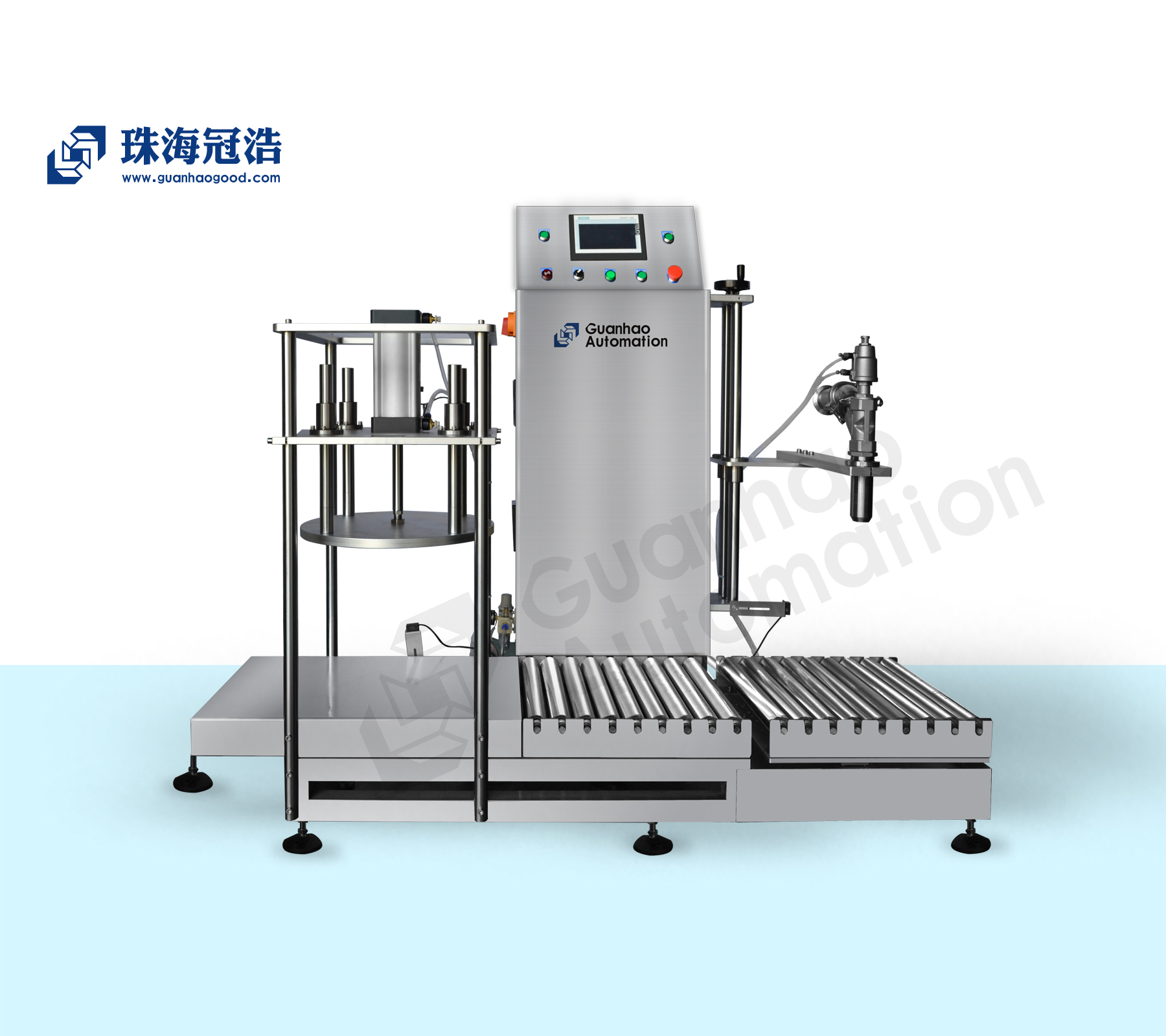

半自動稱重式灌裝機（單頭、雙頭可選）

                                                                                                           Semi automatic weighing type cask filling machine

產品說明

Product description

稱重式灌裝機采用人機界面，電腦自動化灌裝，操作簡單方便！整體采用無動力滾筒輸送，省時省力，傻瓜式操作！速度快！精度高！本機適用于：液體肥料、添加劑、化工液體、潤滑油、防凍液、食用油、乳油等一系列液體灌裝 。

Weighing type filling machine using Man-machine interface, computer automation filling, easy to operate! The overall use of roller conveying, save time and effort, fool-type operation! High Precision! This machine is suitable for: food, beverage, mineral water, paint, paint, lubricating oil, antifreeze, edible oil, latex paint, and so on a series of liquid filling.

技術參數

Technical parameters

電壓/功率：380v/4KW

Voltage/Power: 380v/4kw

灌裝范圍：1-30KG(可以根據要求定做)

Filling range:1-30kg (can be customized according to requirements)

生產能力：140-240桶/時（以20公斤油為例）

Production capacity: 200-480 barrels/Time (4 L for example)

整機尺寸：1000mm*800mm*1550mm         1300 mm*800 mm*1550 mm

Machine Size: 3000mm*1000mm*1600mm      1300 mm*800 mm*1550 mm

灌裝頭數：1、2頭可選（可以定做）

Number of filling heads: 2 (can be customized)

工作氣壓：0.5-0.7Mpa

Working pressure: 0.5-0.7mpa

灌裝精度：±≤0.1%FS

Filling accuracy: ±≤0.1%FS

產品優勢：

Product Advantages:

本機采用電腦觸摸屏直接輸入所要灌裝重量，使操作更簡單，更人性化。精度高、速度快。所有接口采用快接式連接，方便清洗，換料省時省力，同時本機自帶排料系統，使換料更快更干凈。稱重式灌裝機可以單頭或雙頭使用，整機外觀采用不銹鋼，外觀大氣、美觀、干凈衛生。滿足行業標準。 后面可以配滾筒式壓蓋機，排氣徹底，速度快，省時省力省人！經濟實惠的設備組合！

This machine uses double-head dual-pump dual-frequency, the use of computer touch screen direct input to fill the weight, so that the operation is simpler and more humane. High precision, fast speed, can simultaneously fill two different materials. All interfaces adopt quick connection, easy to clean, save time and labor, at the same time the machine with a nesting system, so that the material faster and cleaner. Weighing filling machine can be used single head, the appearance of the whole machine using stainless steel, the appearance of the atmosphere, beautiful, clean and sanitary.Meet industry standards.

以上灌裝機可根據客戶產品要求量身訂做！
